Module 2 Activity Research

Weekly Activity Template

Zhenfei Xu


Project 2


Module 2

Research into the model, determining the overall form and internal structure of the preliminary design. Furthermore, for my research, delving into Arduino circuit layout and the code development process to ensure the entire interaction operates in a feasible manner.

Workshop 1 Geurilla Prototyping I

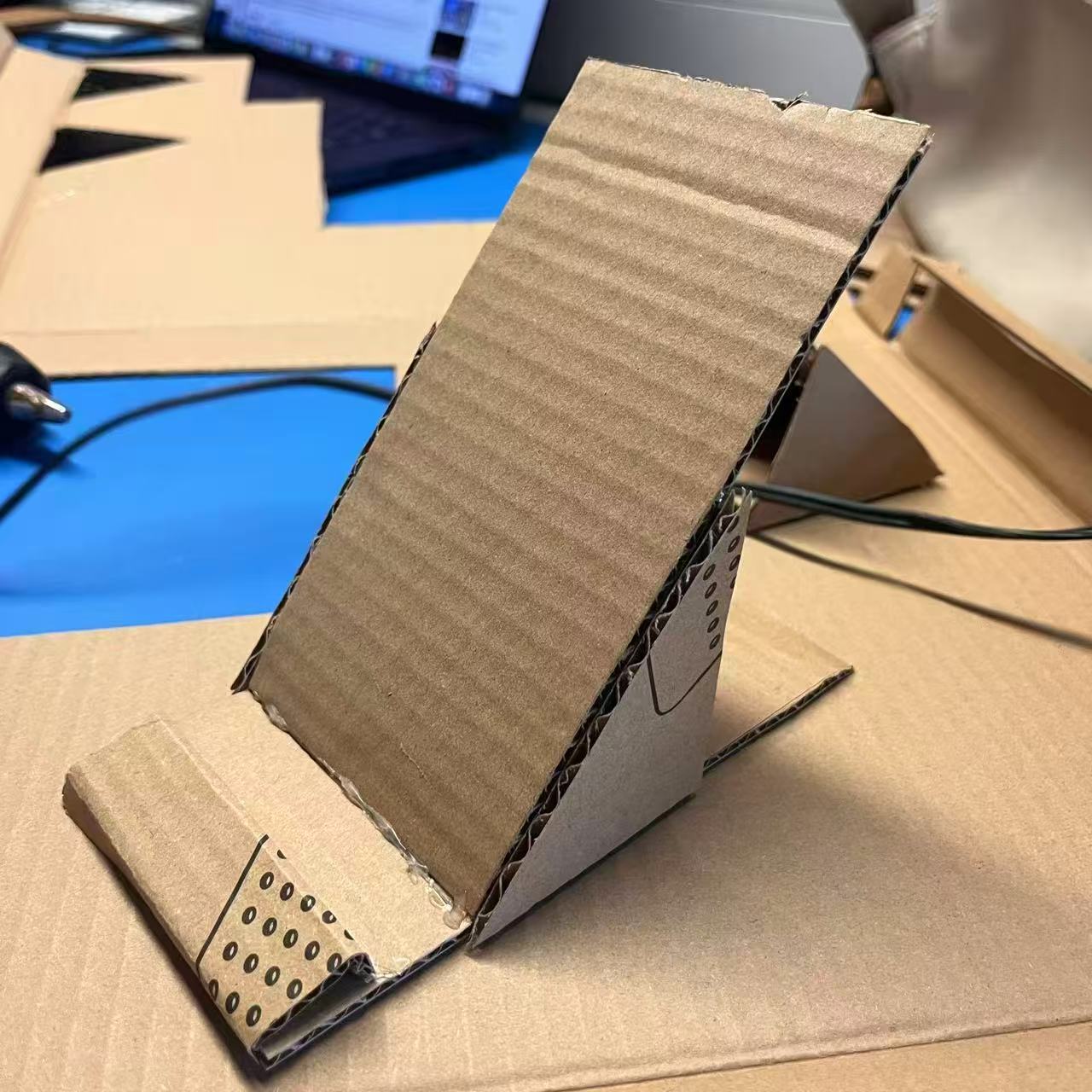

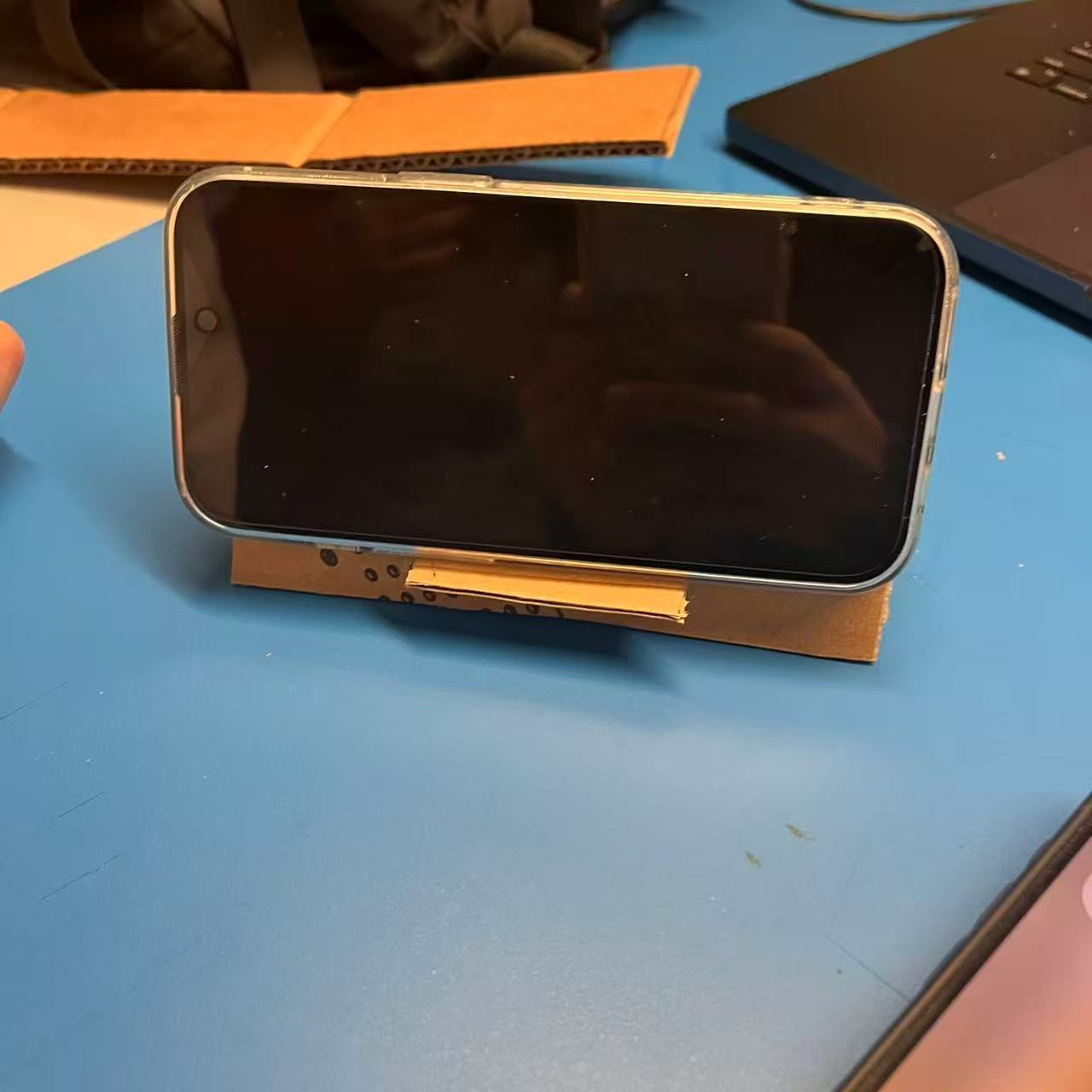

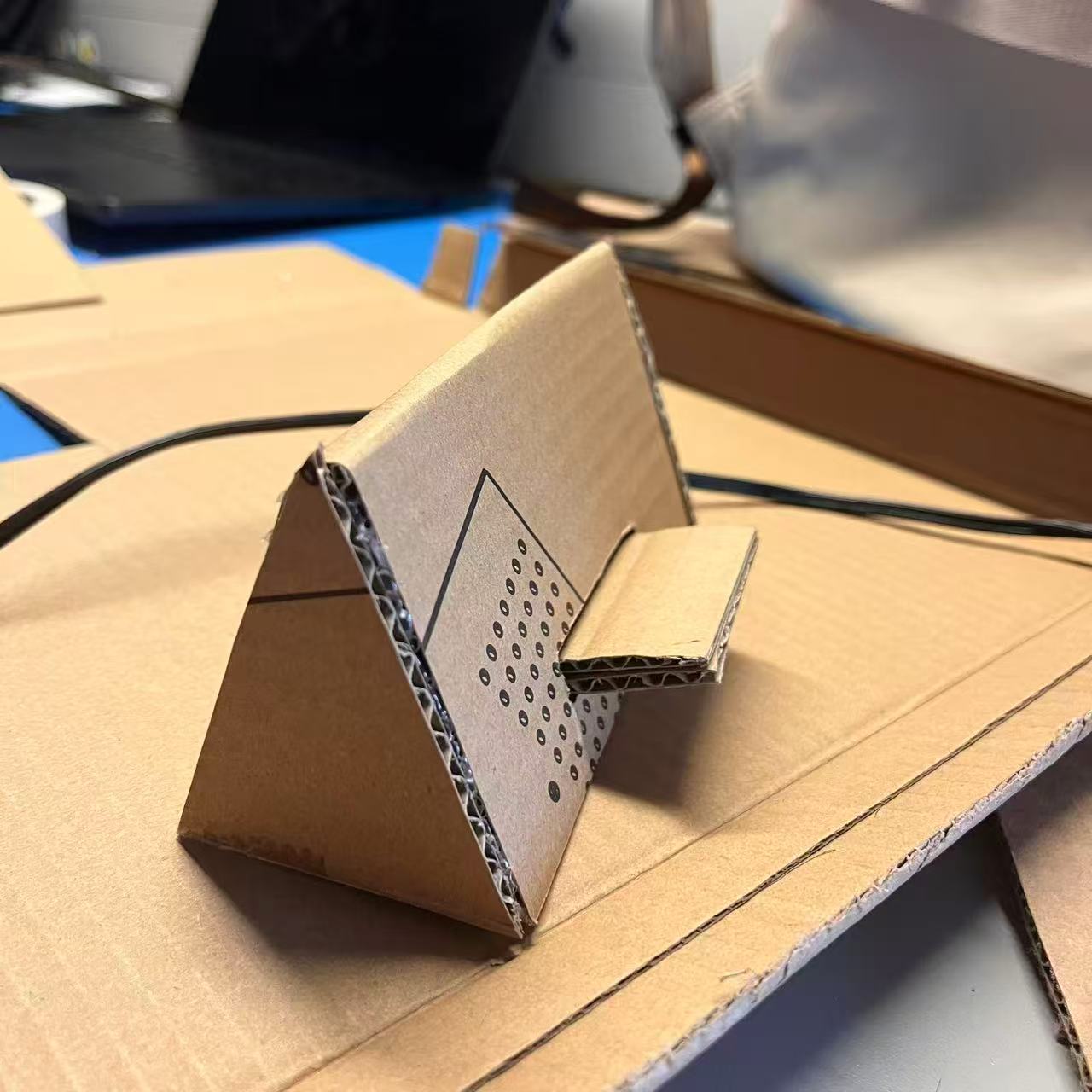

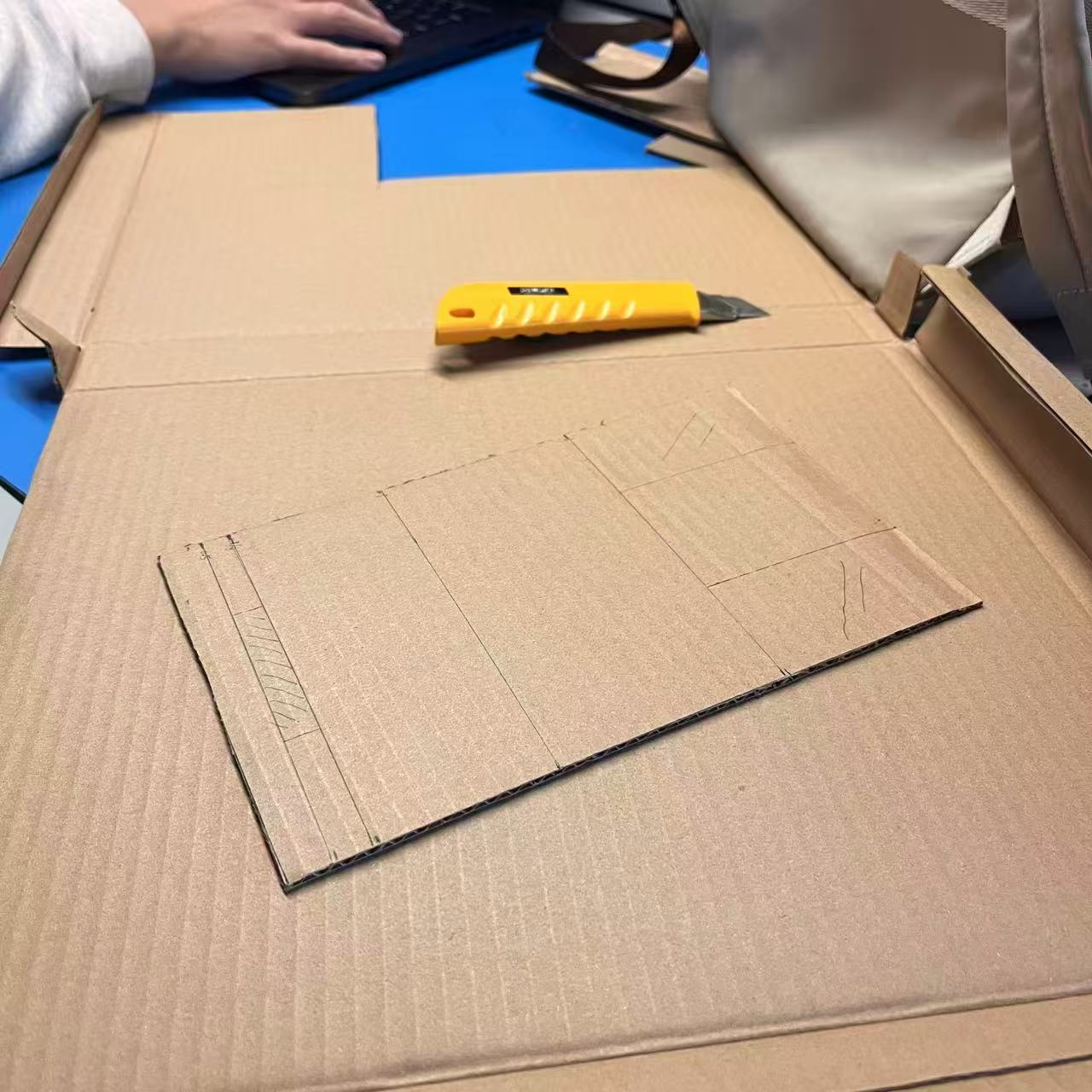

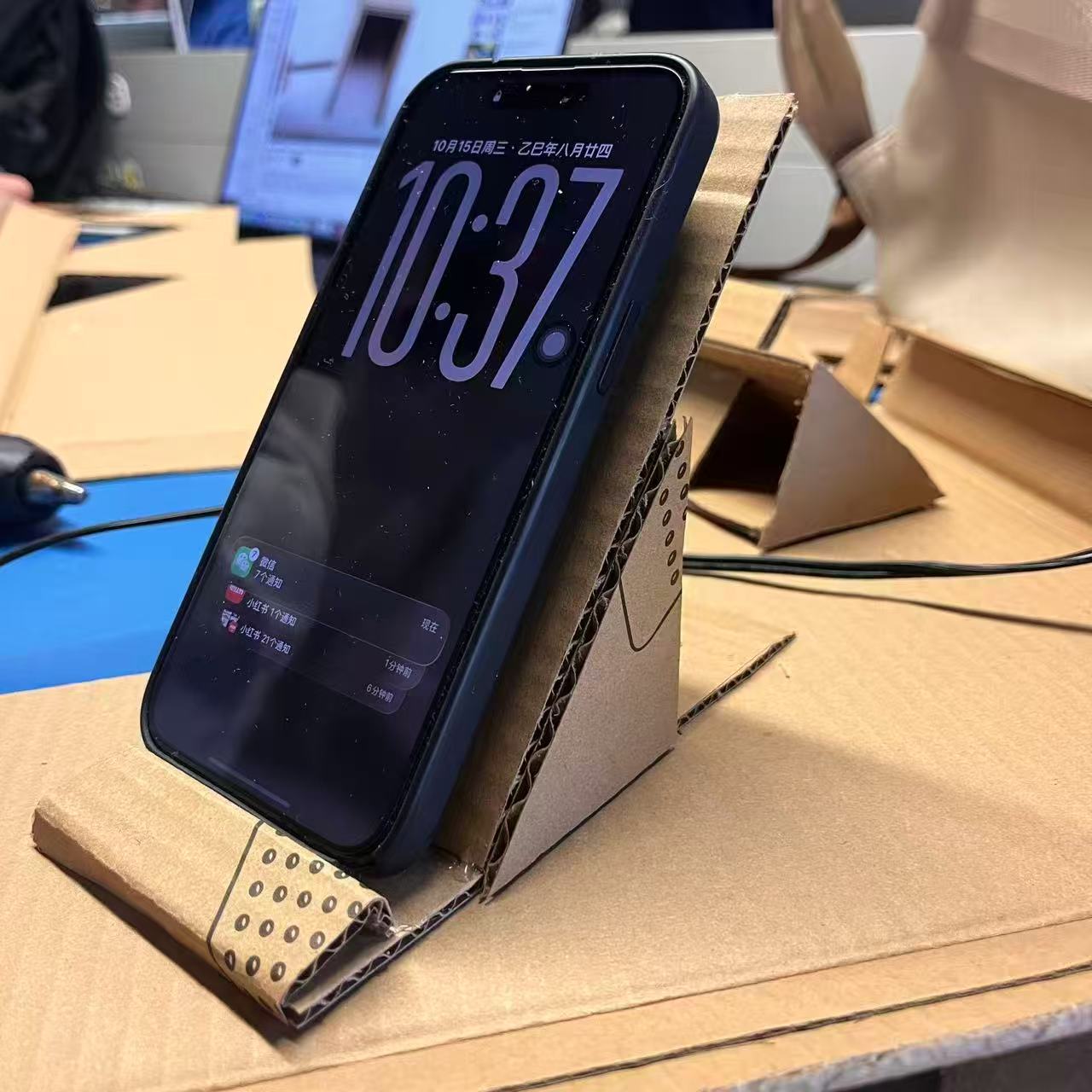

Prepare cardboard and draw lines Completed the initial phone stand Mobile Phone Testing Modifications can support greater weight and facilitate directional changes. Mobile Phone Testing

Workshop 2 Geurilla Prototyping II

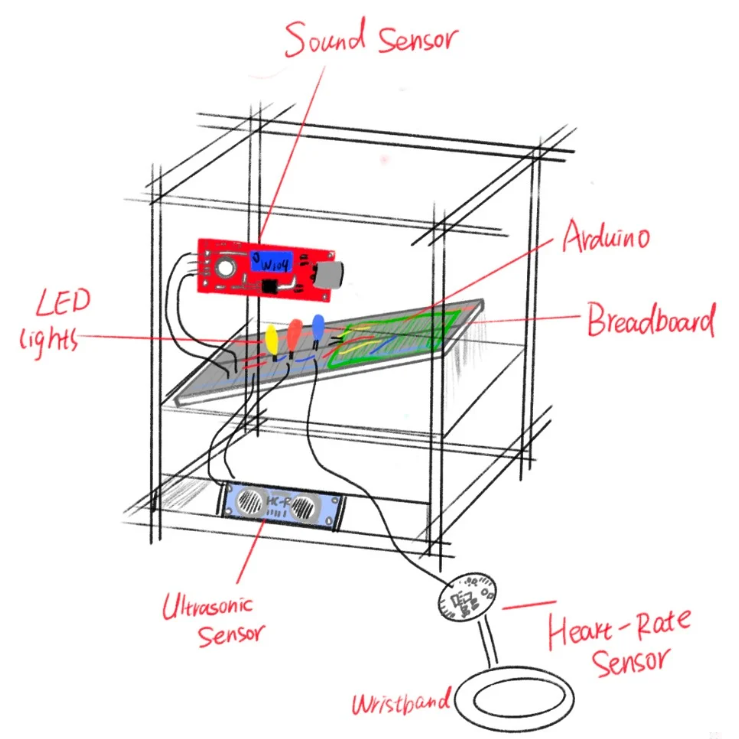

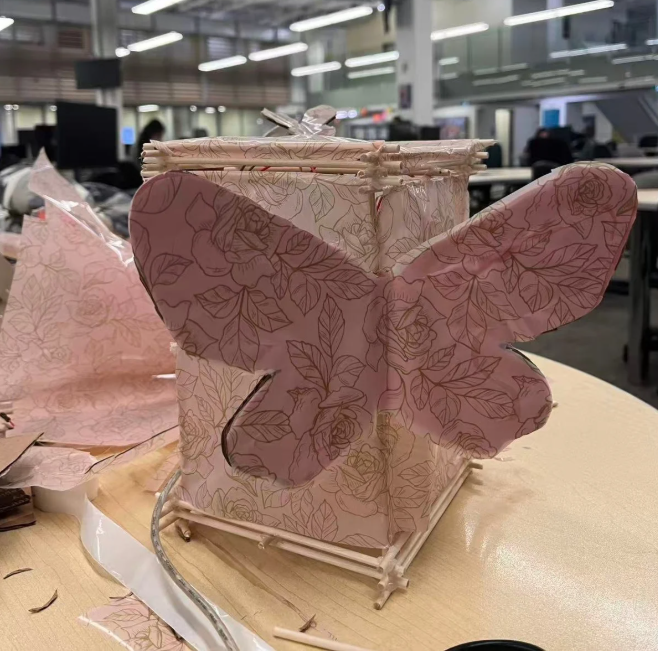

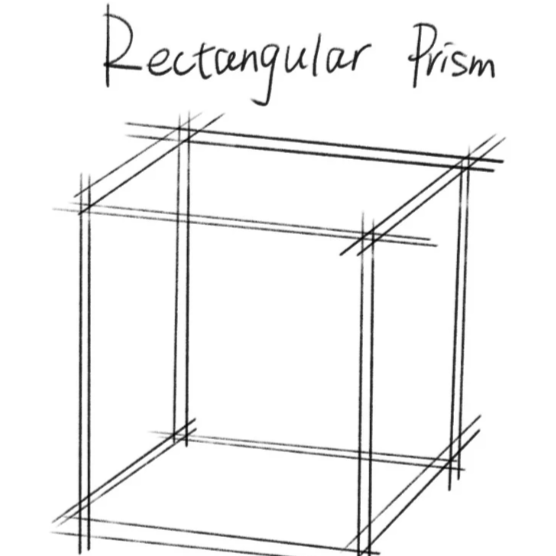

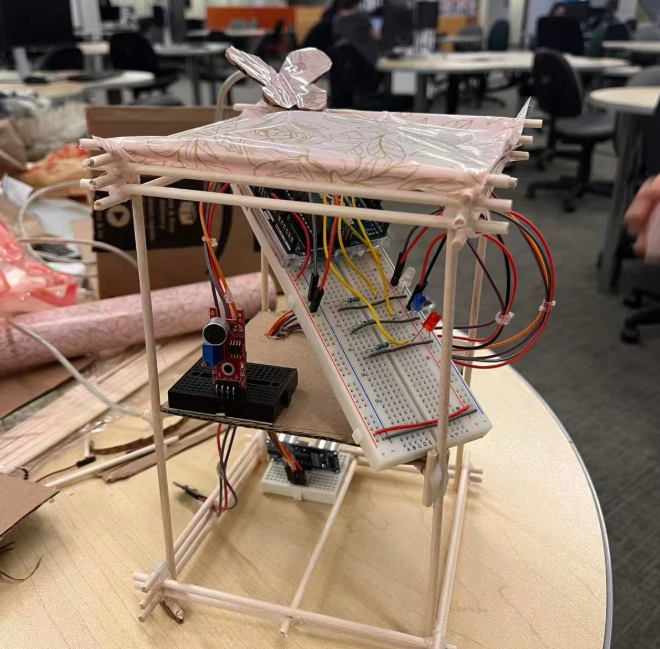

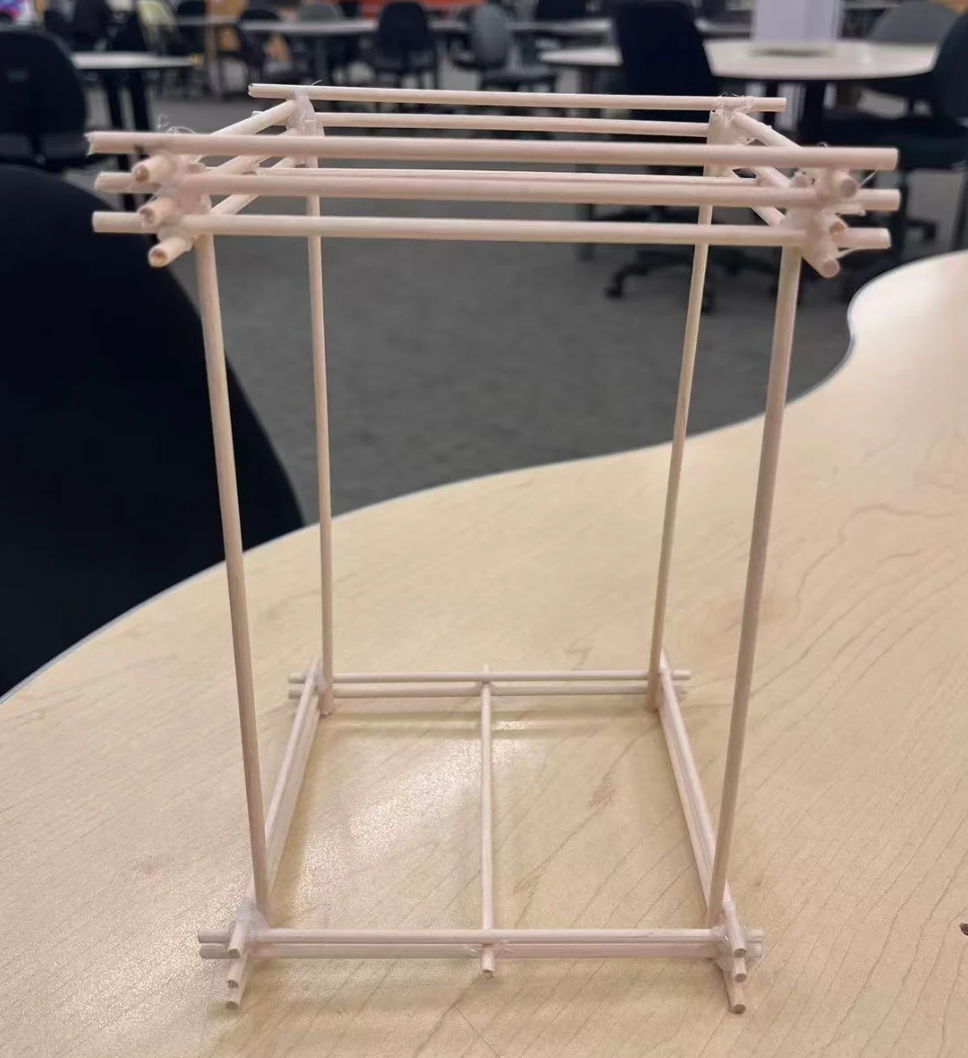

Preliminary Model Design Framework Diagram Preliminary Model and Circuit Board Design Framework Diagram Physical Framework Physical Model and Circuit Board Design Framework Diagram Final Model

Activity 1: My Resarch

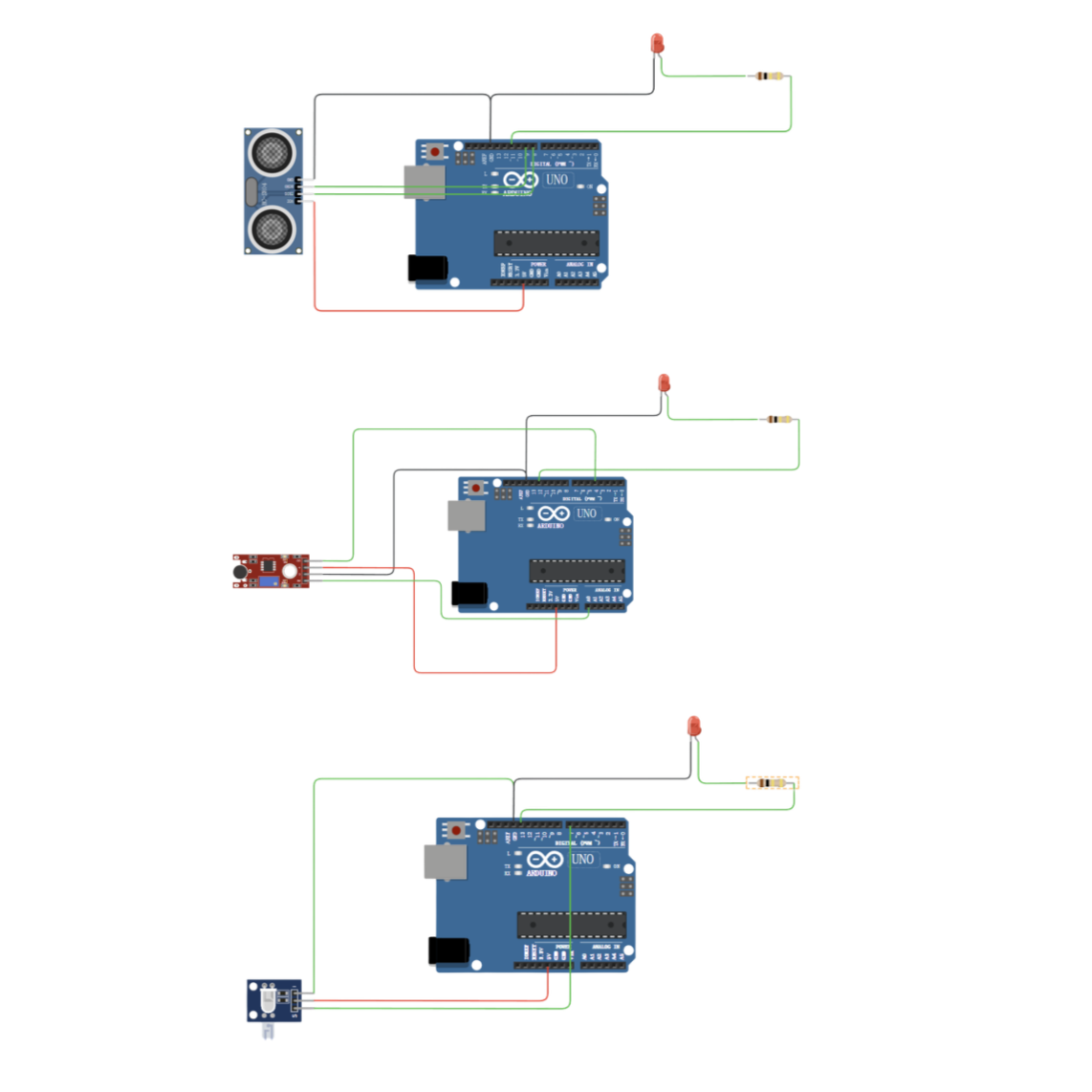

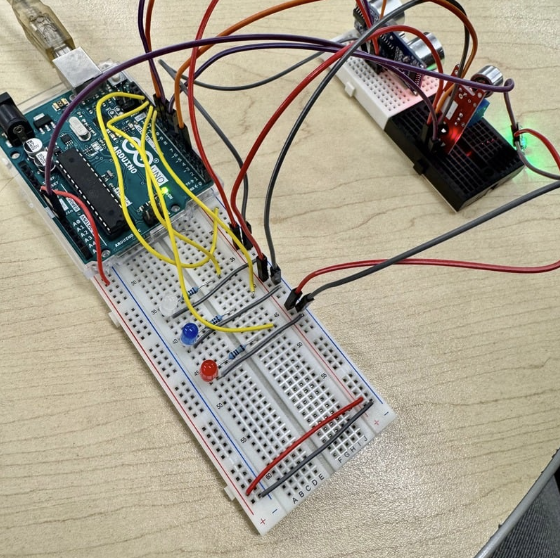

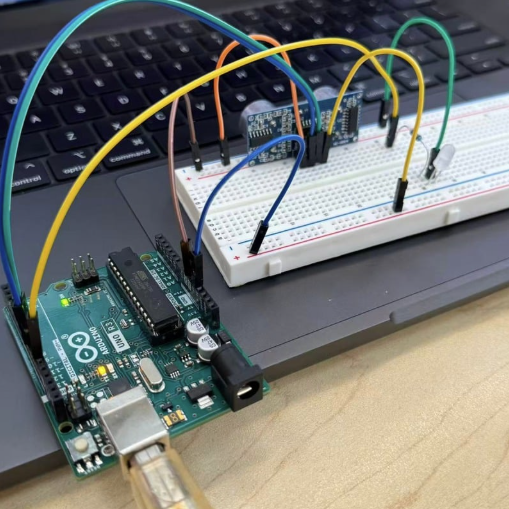

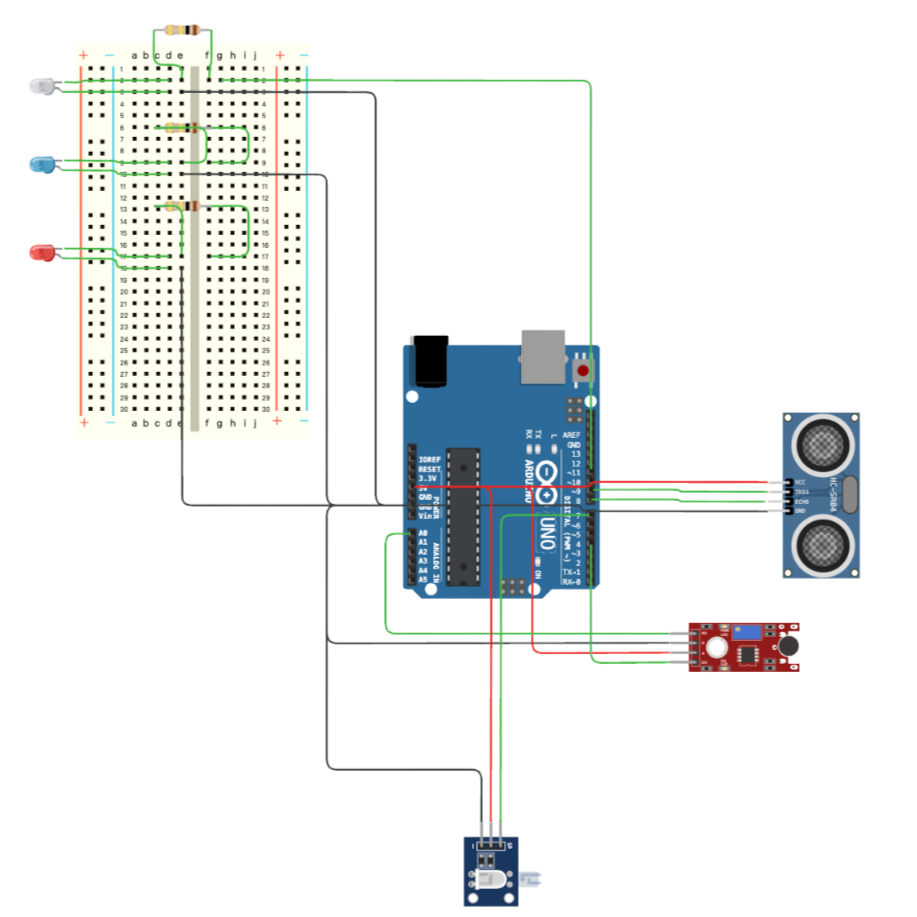

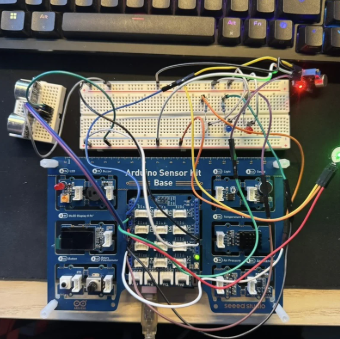

Schematic diagrams for the three sensors Conduct physical testing to verify that all sensors and wiring are operational. All Sensor Merge Schematic Diagram All sensors have been integrated, and the test circuit is operational. Optimize the original circuit layout and plan the circuit colors.

Activity 2: My Reearch

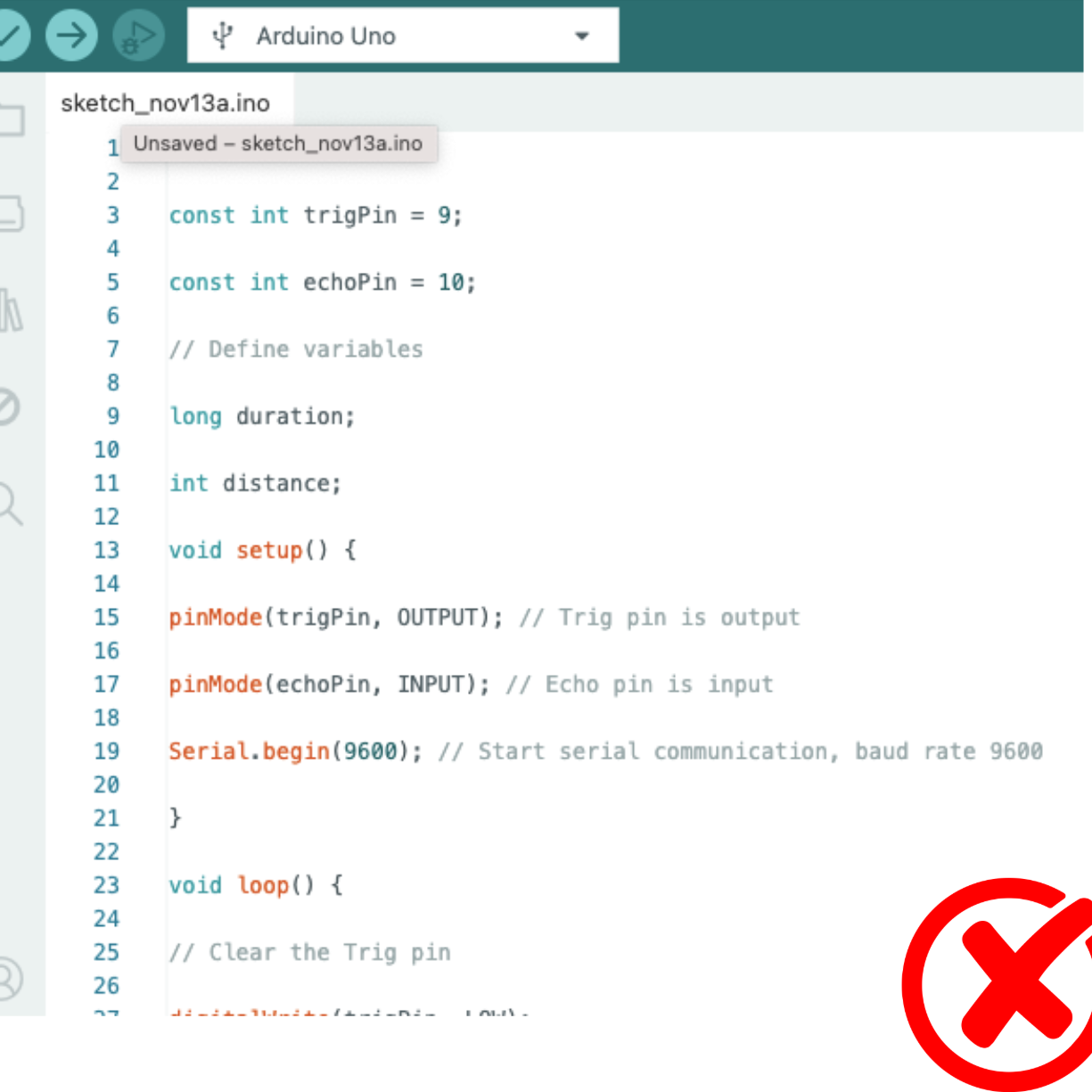

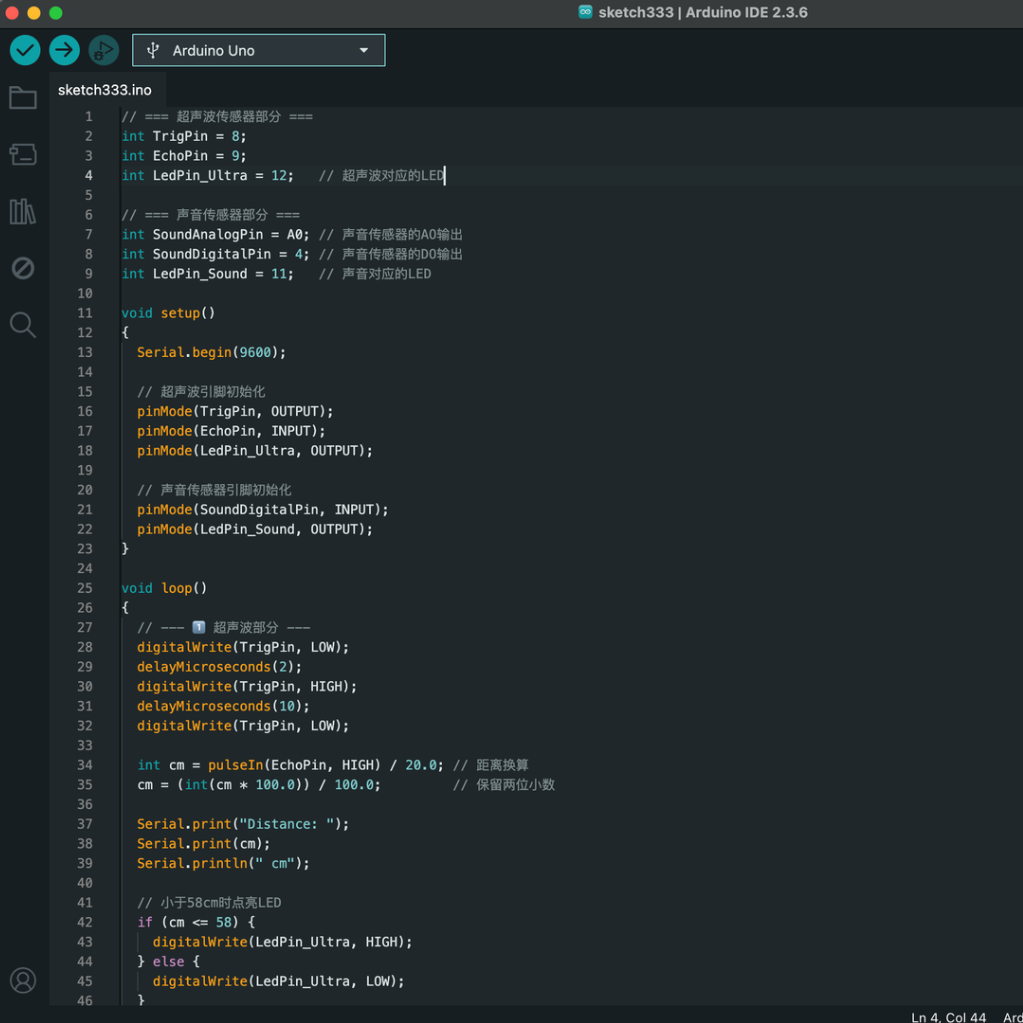

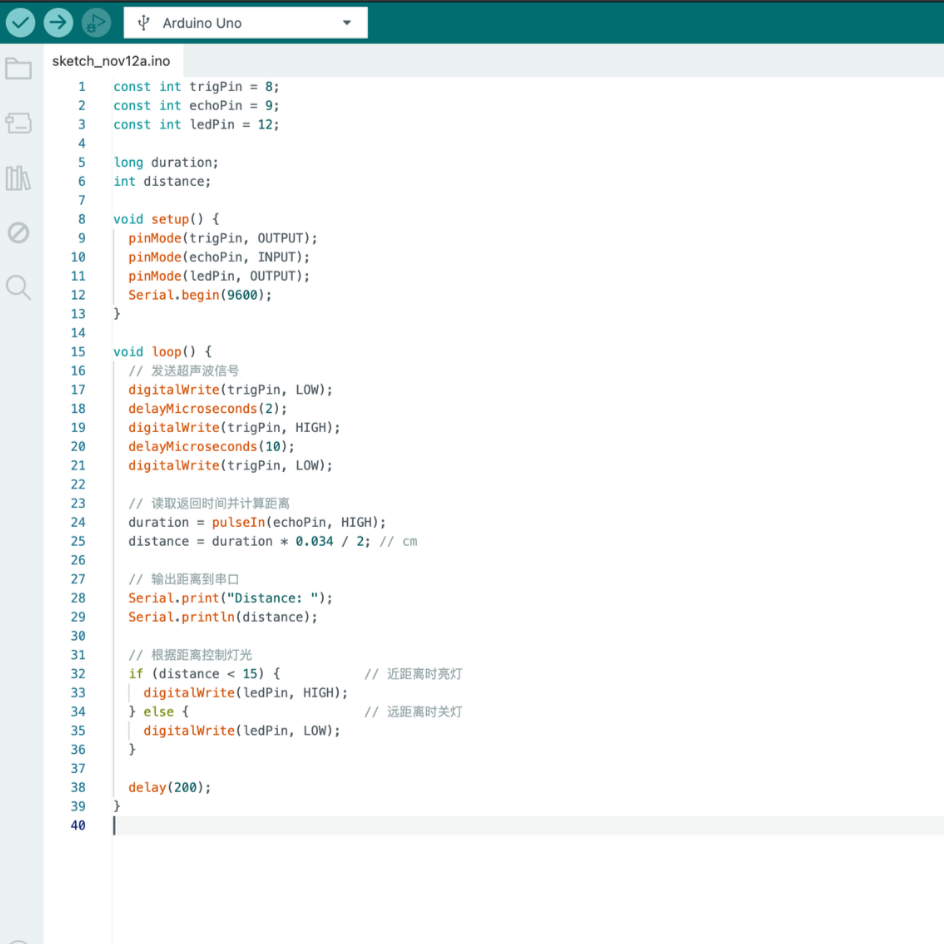

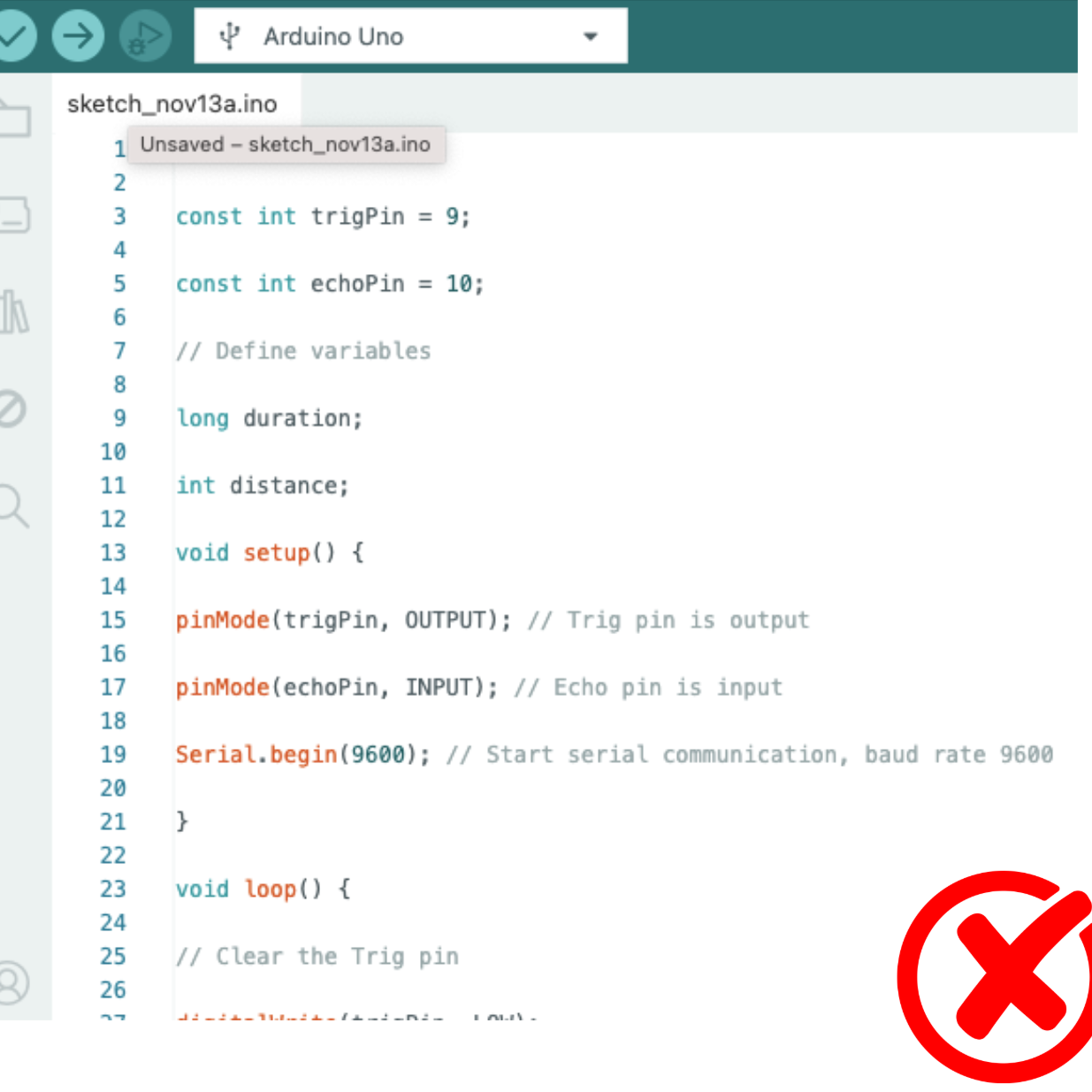

Tried code 1, but it failed. Tried code 2, but it failed. Tried code 3, but it failed. With AI assistance, successfully ran the code for a single sensor. Merge all sensor codes and eliminate issues.

Additional Research or Workshops

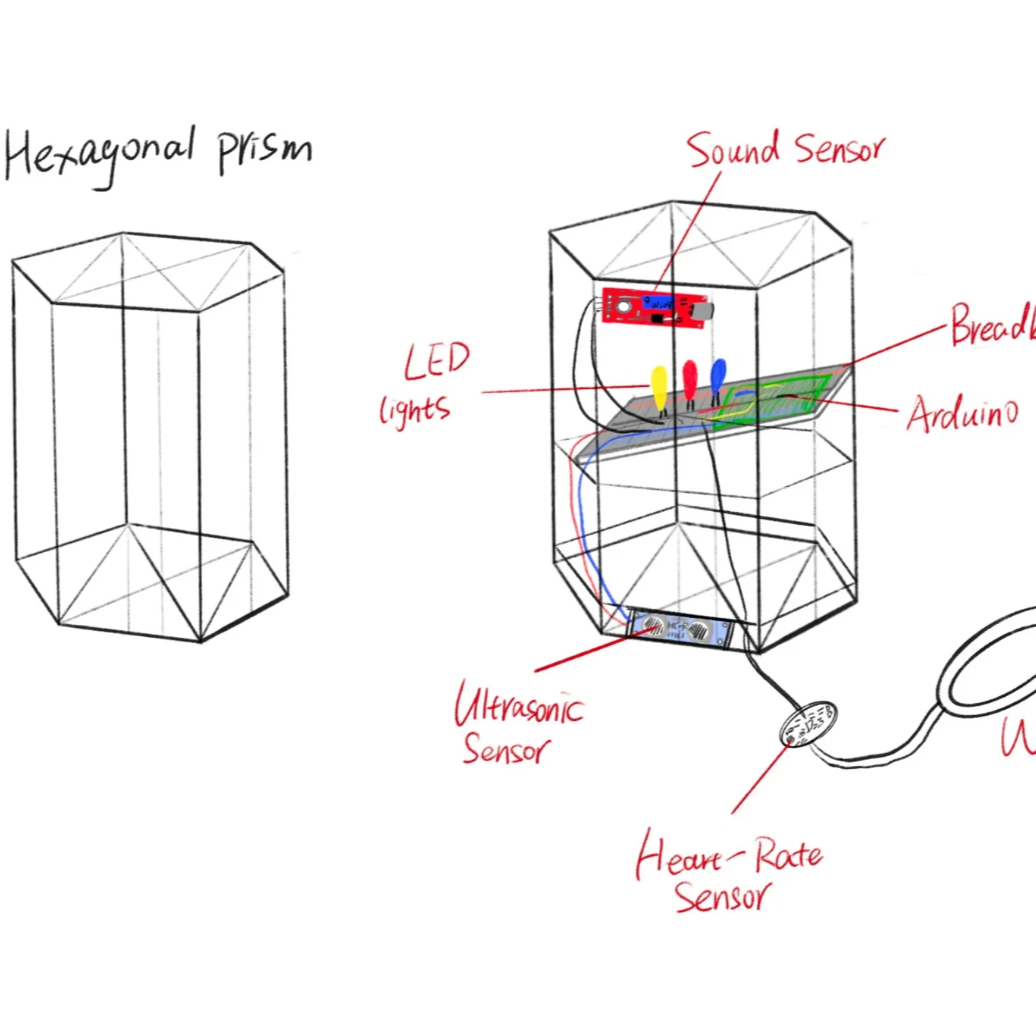

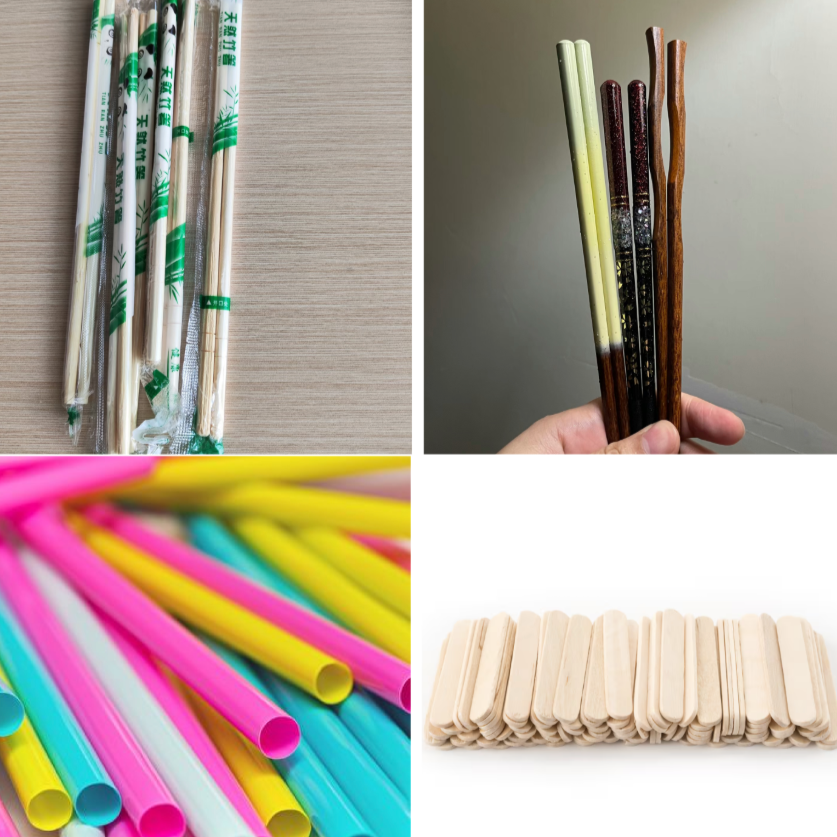

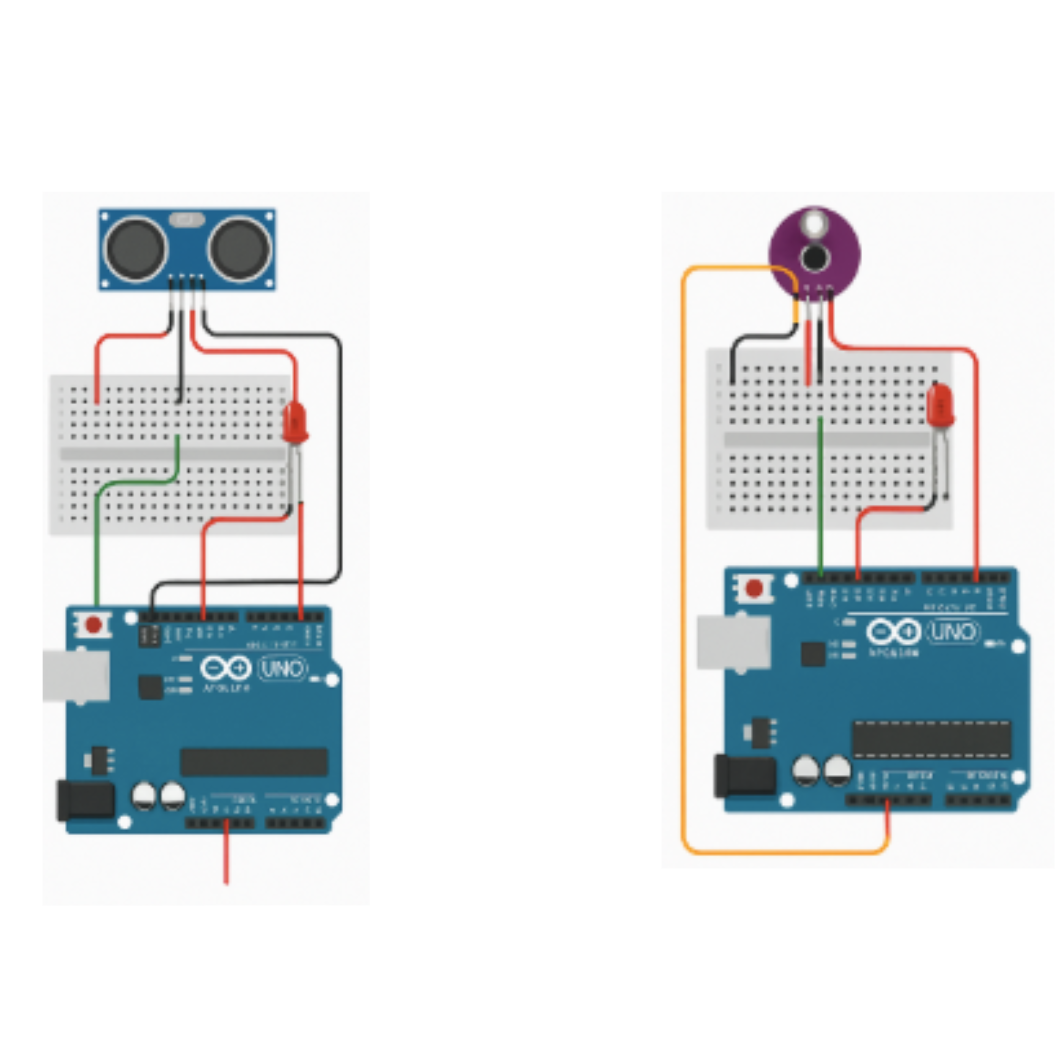

Different Line Tests Try different looks Research the impact of lighting and color on the overall atmosphere. Different materials: bamboo, wood, plastic Different types of lamps

Project 2


Project 2 Prototype

The final product features a white light sensor that responds to ultrasonic waves, a red light sensor that detects heartbeats, and a blue light sensor that responds to sound.

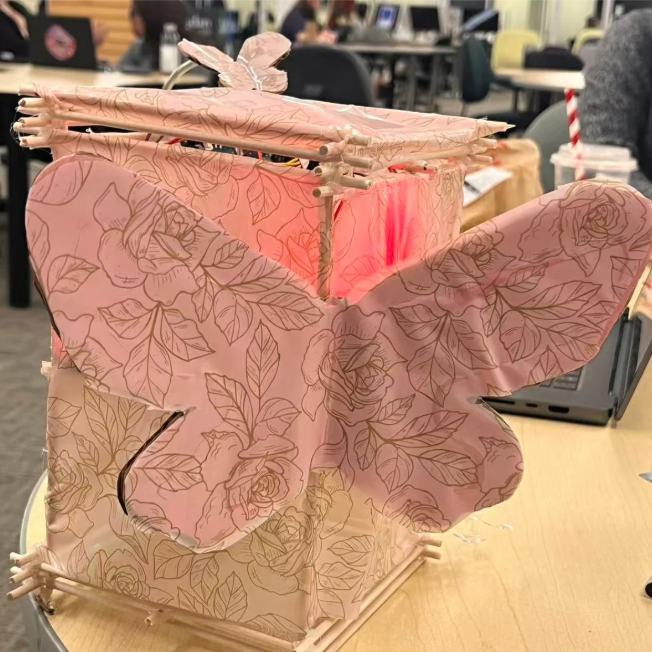

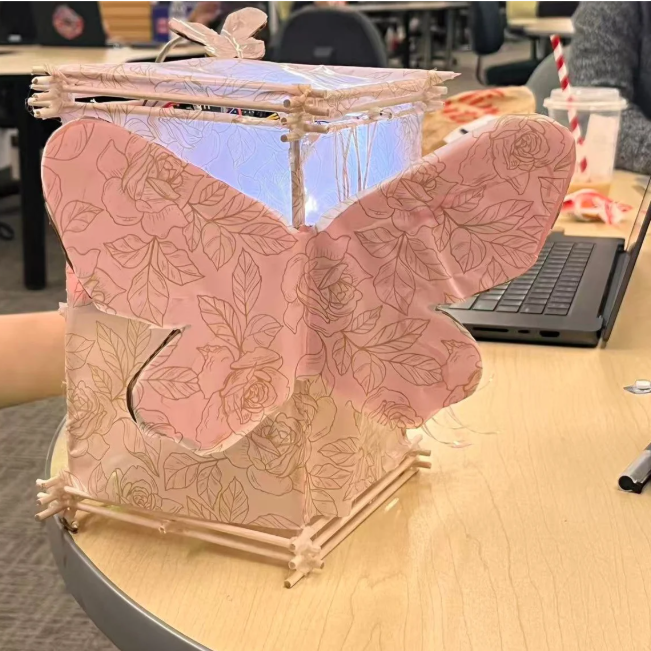

White light-responsive ultrasonic sensor Red light responds to heartbeat sensor Blue light responds to the sound sensor
×
